A coating thickness gauge can measure the thickness of insulating coatings on non-magnetic materials enamel, rubber, paint, and plastics coatings on the base of copper, aluminium, zinc, and so on. This blog will look into the special measurement attributes of a coating thickness gauge in the UK.

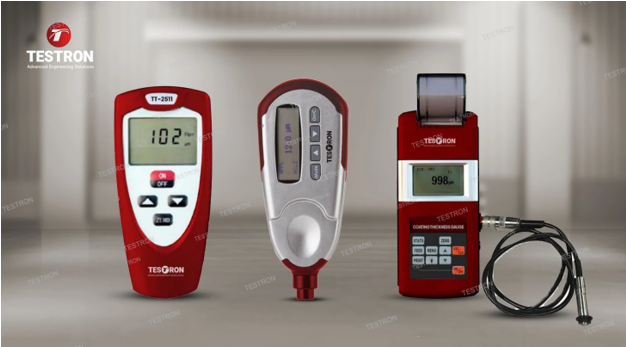

Testron Group has a collection of effective coating thickness gauge models, such as the TT-2501, TT-2605, TT-2600, TT-2511, and the TT-2510E. Here, all of these models will be explored in terms of their relevance to the UK automotive, manufacturing, and painting industries.
The Technical Specifications of Testron’s Coating Thickness Gauge in the UK
In this section, let’s look into the technical specifications of some of the most well-known Coating Thickness Testers by Testron. In this context, the models to be evaluated are the TT-2501 and TT-2510E.
Here is a look at the technical specifications of the TT-2501:
| Model | TT-2501 | ||||
| Probe Type | TT-2500 | TT-2501 | |||
| Measuring Methods | Magnetic induction (F) | Eddy Current (N) | |||
| Measuring Range | 0-1250μm | ||||
| Display Resolution | 0.1μm | ||||
| Tolerance | Zero-point calibration(μm) | ±(3%H + 1) | ± (3%H+1.5) | ||
| Two points calibration(μm) | ±[(1%- 3%)H + 1] | ±[(1%- 3%)H + 1.5] | |||
| Measuring Condition | Min. curvature radius(mm) | Convexity 1.5 | Concave 9 | Convexity 3 | Concave 10 |
| Min testing area diameter(mm) | Φ7 | Φ5 | |||
| Power | AAA 1.5V Battery (2pc) | ||||
| Working environment | 0-40°C; humidity: 20%~90% | ||||
| Dimensions (mm) | 145x60x28 | ||||
| Weight (g) | 132 | ||||
Table 1: Technical Specifications of the TT-2501
It is these technical specifications that make Testron a top coating thickness gauge manufacturer. With extended measurement limits and effective calibrations, the TT-2501 offers extremely effective measures for gauging the thickness of insulating coatings.
And with that done, let’s explore the technical specifications of the TT-2510E:
| Model | TT-2510E | ||
| Probe Type | F | N | |
| Working principle | Magnetic induction | Eddy current | |
| Measuring range | 0-1250μm | 0-1250μm, 0-40μm (for chrome plate on copper) | |
| Minimum resolution | 0.1μm | ||
| Tolerance | Zero point calibration | ±(3%H + 1)μm | ± (3%H+1.5)μm |
| Two-point calibration | ±[(1%- 3%)H + 1]μm | ±[(1%- 3%)H + 1.5]μm | |
| Measuring condition | Min. curvature radius | Convexity 1.5mm | Convexity 3mm |
| Min. area diameter | Φ7mm | Φ5mm | |
| Critical thickness of the base | 0.5mm | 0.3mm | |
| Operating environment | Temperature: 0°C-40°C | ||
| Humidity: 20%-90% | |||
| No strong magnetic field | |||
| Power | 2 pcs AAA 1.5V battery | ||
| Dimension | 110x50x23 (mm) | ||
| Weight | 100g | ||
Table 2: Technical Specifications of the TT-2510E
These technical specifications explore the standardised coating thickness gauge calibration of the discussed model of coating thickness gauge in the UK.
Features of Testron’s Coating Thickness Gauge in the UK
Again, among all of Testron Group’s models of coating thickness gauge in the UK, let’s consider the TT-2501 and the TT-2510E as a reference when discussing the features. In this way, the features that make Testron a top coating thickness gauge supplier will be explored with reference to two of the manufacturer’s most notable instruments.
With that being stated:
The Features of the TT2501
- It comes with a zero-point calibration and a two-point calibration that can easily correct the system error of the machine’s probe.
- The metal testing machine also features two working modes: DIRECT and BATCH and also has two measuring methods, CONTINUE and SINGLE.
- The digital coating thickness gauge statistics include the mean, maximum, minimum, test numbers, and standard deviation.
- It has a memory to fit 500 data.
- It supports the deletion of current data, calibrated data, and limit data, as well as the storage of data.
- It has an indication system for low battery and an error alarm.
- The indicator will also buzz during operations for indications.
- The coating thickness testing machine has a backlight for the screen.
- It has options for auto and manual shutdown.
The Features of the TT2510E
- It has both zero-point calibration and two-point calibration to correct the system error of the probe.
- It has two working modes in DIRECT and BATCH, and it has two measuring ways in CONTINUE and SINGLE.
- The statistics can include the mean, maximum, minimum, test numbers, and standard deviation.
- The coating thickness gauge in the UK has an automatic recognition of the substrate.
- It has a memory capacity for 600 pieces of data.
- It also, like the TT-2501, has a low battery indication and error alarm.
- It also has an indicator that buzzes during the operation for indication.
- Much like the TT-2501, it has options for auto or manual shutdown.
Therefore, the TT-2051 and the TT-2510E have acted as the representatives that have driven home the robustness of the technical specifications and how their features benefit the UK automotive, manufacturing, and painting industries.
The Benefits of Testron’s Coating Thickness Gauge in the UK
Testron’s coating thickness gauges offer significant advantages in the UK, including the assurance of the product quality by accurately verifying coating thickness against the standards, such as:
- It ensures the quality and compliance.
- It saves costs and resources.
- It also improves operational efficiency.
- The coating thickness tester also supports specific applications.
- It also continuously provides support to specific applications.
- The coating thickness gauge price is also comparatively affordable when observed against industry standards in the UK automotive, manufacturing, and painting
Therefore, it is not only true that Testron’s coating thickness gauge in the UK is an effective measurement tool for the thickness of metallic coatings, but it is also a top-notch instrument for the UK-based industries.
Final Verdict
To make the final comment on the coating thickness testing machine in the UK by Testron, it can be stated that all the models of this product have significant usability across all the key industries of the UK, such as the automotive, manufacturing, and painting industries. With strong technical specifications and robust features, it is its plethora of benefits that establishes it as a top measuring instrument.
