Plastic injection molding is a key method for making plastic parts. It turns raw plastic into useful items like toys, car parts, and containers. This guide covers everything from basics to advanced tips. If you want to learn more or find help, visit https://moldpartner.com/. We will explain each step in detail.
First, understand what plastic injection molding is. It heats plastic pellets until they melt, then injects the liquid into a mold. The mold shapes the plastic as it cools and hardens. Once solid, the part pops out. This process is fast and makes identical parts every time. It suits high-volume production but works for smaller runs too.
How the Process Works
The process starts with material preparation. Plastic pellets go into a hopper. A screw inside the machine heats and mixes them. The screw pushes the melted plastic forward.
Next comes injection. The machine forces the hot plastic into the mold under high pressure. This fills every corner of the mold cavity. Pressure ensures no air bubbles or gaps.
Then, cooling happens. The mold has channels for water or air to cool the plastic quickly. Cooling time depends on part thickness and material type. Thinner parts cool faster.
After cooling, the mold opens. Ejector pins push the part out. The cycle repeats for the next part. A full cycle takes seconds to minutes.
Machines vary in size. Small ones make tiny parts, while large ones handle big items like bumpers. Automation helps in big factories to keep things running smooth.
Types of Materials Used
Many plastics work in injection molding. Thermoplastics are common because they melt and reshape easily. Examples include polyethylene for bottles and polypropylene for containers.
ABS is strong and used in toys or electronics. Polycarbonate is clear and tough, good for lenses or shields.
Thermosets set hard and do not melt again. They suit high-heat needs, like electrical parts.
Choose material based on what the part must do. Think about strength, flexibility, color, and cost. Some materials resist chemicals or weather.
Additives can improve properties. Fillers make parts stronger, colors add tint, and flame retardants boost safety.
Test materials first to ensure they flow well and do not warp.
Advantages of Plastic Injection Molding
This method has many plus points. It produces parts quickly once set up. High speed means low cost per part for large orders.
Parts come out precise. Molds create exact shapes with tight tolerances. This reduces waste and fixes.
It handles complex designs. Molds can include undercuts, threads, or inserts.
Material use is efficient. Little scrap compared to other methods like machining.
It allows mass production. One mold makes thousands or millions of parts.
Colors and finishes vary. Add color to pellets or paint after.
Disadvantages to Consider
There are downsides too. Initial mold cost is high. Designing and making a mold takes time and money.
For small runs, it might not save money. Other methods like 3D printing suit prototypes better.
Material limits exist. Not all plastics inject well; some need special machines.
Part size is capped by machine capacity. Very large parts need big, expensive equipment.
Warping can occur if cooling is uneven. This needs careful design.
Maintenance is key. Molds wear out and need repairs.
Design Tips for Better Parts
Good design avoids problems. Keep walls uniform in thickness to cool evenly.
Avoid sharp corners; use rounds to reduce stress.
Include draft angles so parts eject easily. A slight taper helps.
Think about gate location. The entry point for plastic affects finish.
Use software to simulate flow. This spots issues before building the mold.
Work with engineers early. They know what works in molding.
Common Applications
Injection molding serves many industries. In automotive, it makes dashboards, bumpers, and clips.
Consumer goods include packaging, toys, and appliances.
Medical devices like syringes and tools use it for sterile parts.
Electronics housings protect circuits.
Furniture parts like chair legs come from molds.
Even aerospace uses lightweight plastic components.
Choosing the Right Machine
Machines clamp the mold shut during injection. Tonnage measures clamp force; higher for bigger molds.
Electric machines are precise and energy-saving. Hydraulic ones are strong for large parts.
Hybrid models combine both.
Consider shot size: how much plastic it injects per cycle.
Automation like robots can remove parts faster.
Safety features prevent accidents.

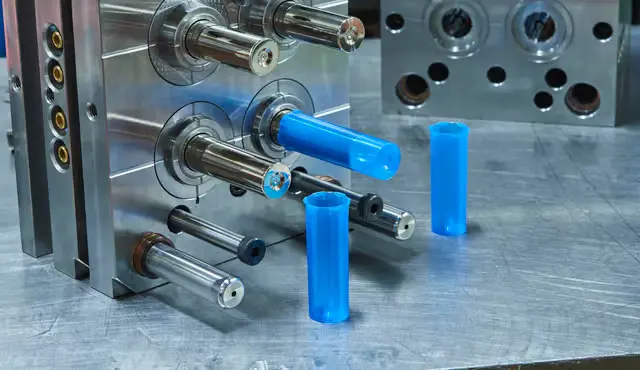

Mold Design and Types
Molds are steel or aluminum. Steel lasts longer for high volumes.
Basic types include two-plate for simple parts.
Three-plate separates runners automatically.
Hot runner keeps plastic melted, reducing waste.
Family molds make multiple parts at once.
Choose based on part count and complexity.
Quality Control Steps
Check parts for defects like sinks, flashes, or shorts.
Use inspections: visual, dimensional, and functional.
Monitor process parameters like temperature and pressure.
Certifications like ISO ensure standards.
Fix issues by adjusting settings or redesigning.
Cost Factors
Costs include mold making, material, machine time, and labor.
Mold price depends on size and features.
Material cost varies by type and quantity.
Run size affects unit price; more parts mean cheaper each.
Shipping and storage add up.
For affordable options, look into plastic injection molding service providers.
Environmental Impact
Plastic waste is a concern. Use recycled materials when possible.
Efficient processes cut energy use.
Some plastics biodegrade.
Recycle scrap runners.
Companies aim for green practices.
Future Trends
Technology advances molding. 3D-printed molds speed prototypes.
Smart sensors monitor in real time.
New materials improve strength and eco-friendliness.
Automation grows with robots.
Customization rises for small batches.
Getting Started with a Project
Plan your part needs. Sketch designs and specs.
Find a partner for molds and production.
For small runs, check low volume manufacturing services.
Test prototypes.
Scale up once approved.
Track progress and adjust.
This guide gives a full view of plastic injection molding. It helps make informed choices for your projects. With right planning, you get quality parts at good prices.
